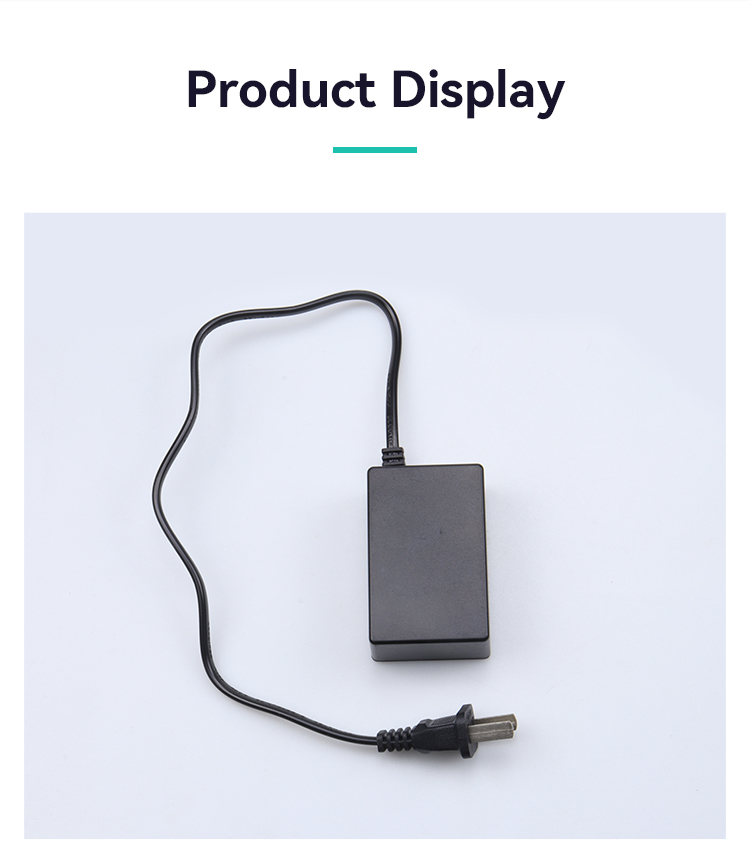

Bluetooth LE Gateway - User Manual

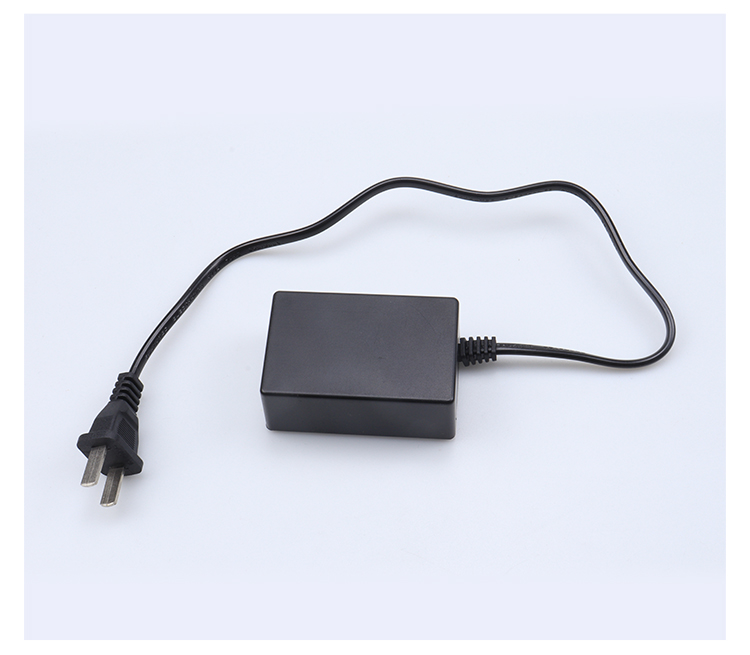

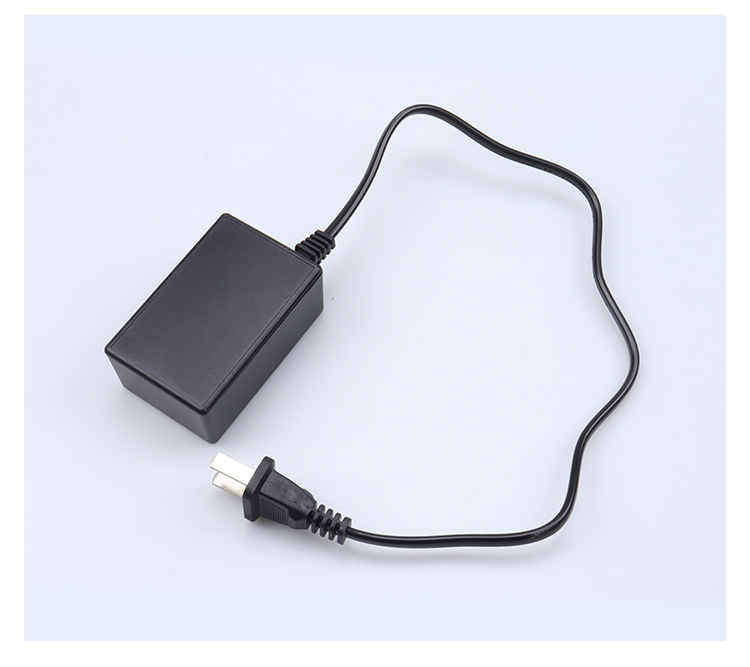

JW1602G4V6

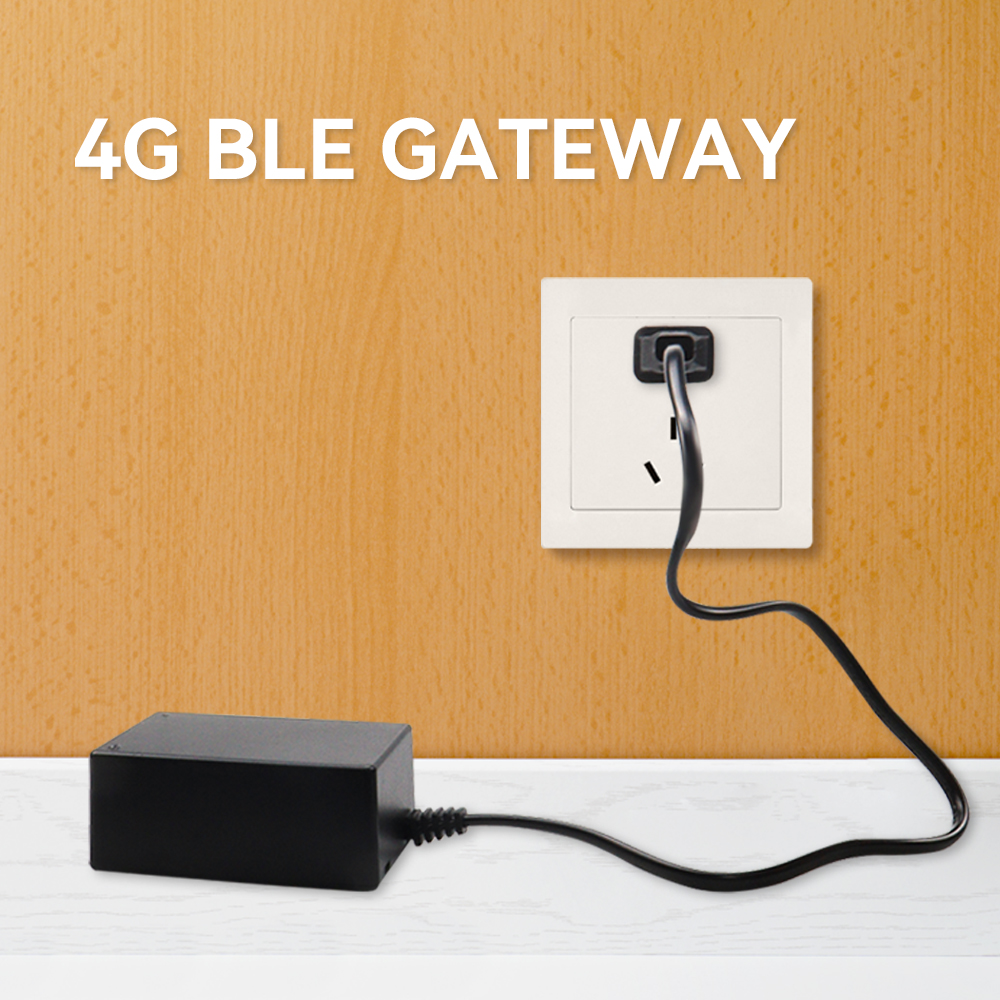

4G LTE BLE Gateway
Overview
The Bluetooth LE Gateway JW1602G4V6 is a Bluetooth Low Energy gateway device. It is designed to scan nearby bluetooth advertising package, can be used for asset tracking, people tracking, pet tracking, sensor data collecting, SOS button signal collecting, etc.
Model
| Model | Description |
|---|
| JW1602G4V6 | Bluetooth LE Gateway, 4G LTE network, IP55 waterproof, 220V AC powered, Upload data to server, MQTT, Black color. Led lights. |
Note: Supported countries are listed at the end of this document.

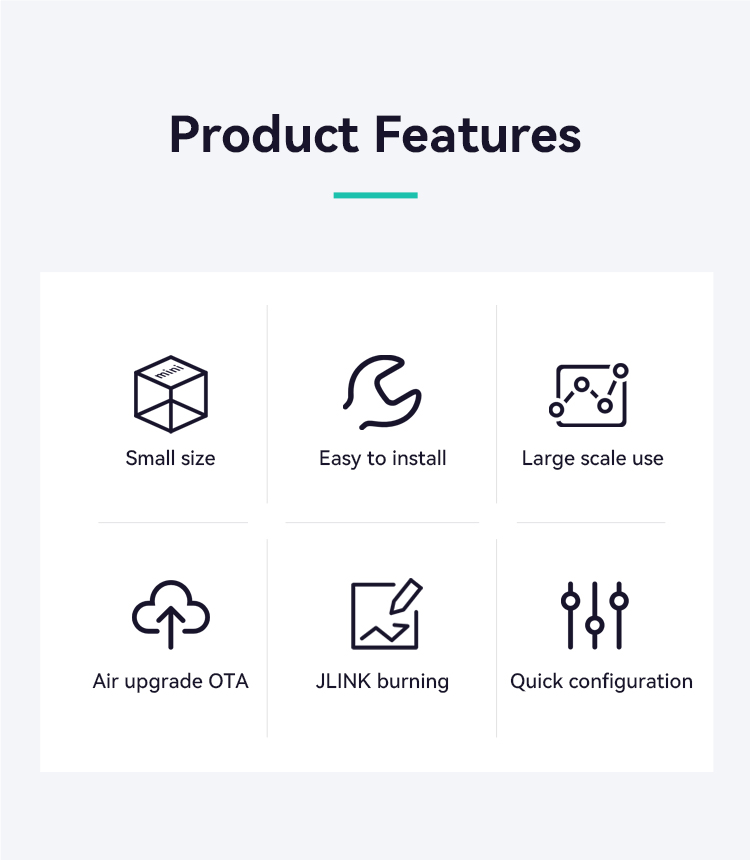

Features
Open protocolStandard firmware with open communication protocol.
Logo printingEasy to print the logo

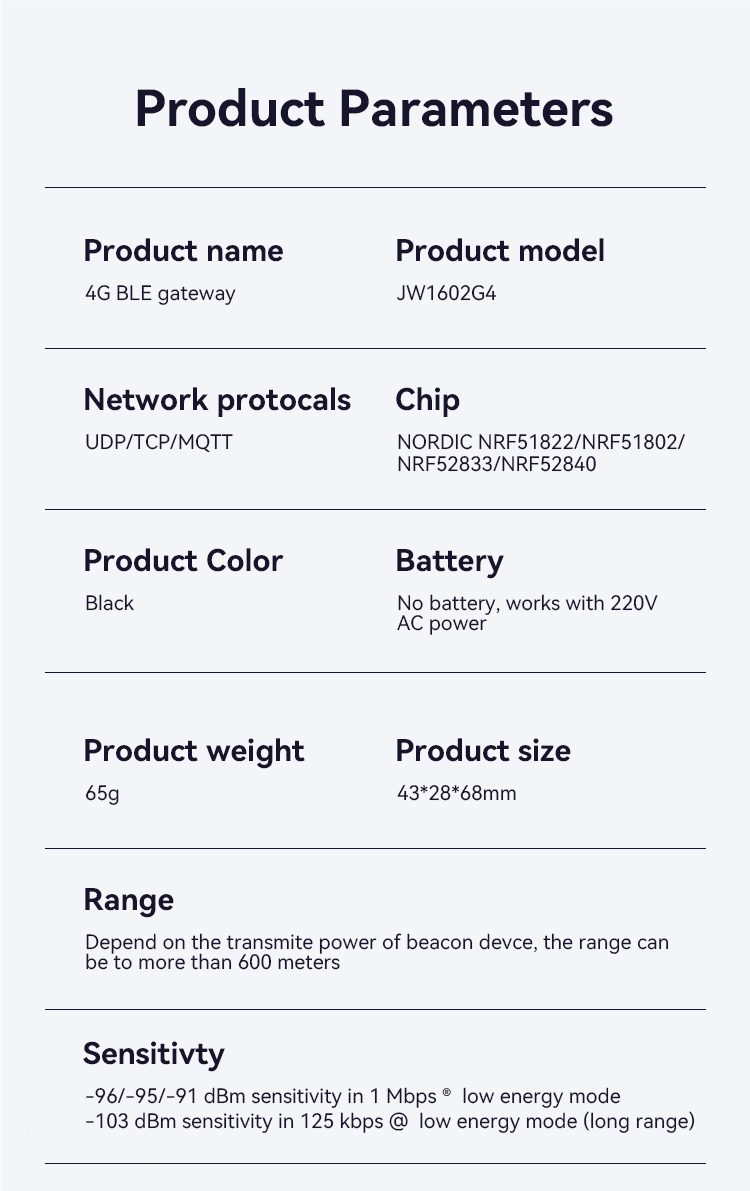

Specifications
CompatibilityBLE 4.0+ advertising devices
Power SupplyAC 100-250V 50/60Hz
Soft RebootConnect by app 'Joyway Beacon' then disconnect
OTA / DFUSupported
J-Link / SWDReserved port on board for programming
LED IndicatorsGPS status, 4G network status, Bluetooth status
Configurable ParametersDevice password, Server IP/URL/port, MQTT/TCP/UDP, MQTT parameters, Scan filters
Transmission Power Levels-20, -16, -12, -8, -4, 0, +4 dBm
SecurityPassword required to connect/configure, AES HW encryption
InstallationIndoor / Outdoor
Working ModeAlways scan and report via 4G (does not scan while connected to app)
Activate Device
It starts working immediately when connected to power source.
Configure Parameters
- Install app: Download "Joyway Beacon" from:
http://www.joyway.cn/download/android_app/JoywayBeacon.apk
- Scan for gateway: Open the app and scan for nearby gateways.
- Connect: Select your gateway (JW1602G4V6) and connect.
- Configure parameters: Enter the following settings:
- Device password (optional)
- Server IP/URL and Server port
- Protocol type (MQTT recommended)
- MQTT parameters (username, password, QoS, keep-alive time)
- Scan filters (RSSI, MAC, RAW data filters)
Communication Protocol (MQTT)
| ID | Topic | Msg Data | Description |
|---|
| 1 | SE/Gateway Mac/Beacon Mac | Raw adv data | Gateway reports scanned advertisement raw data to server |
Electrical Parameters
Case ColorBlack
Power SupplyAC 100-250V, 50/60Hz
Operation Voltage5V DC
Transmission Current500mA (Max, at 0dBm)
BLE Transmission Range50 meters (Maximum)
Antenna50 ohm
Net Weight65g

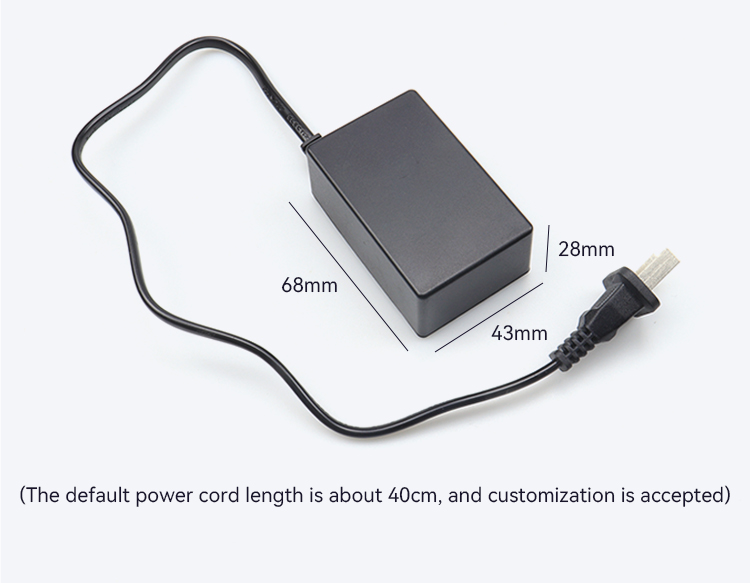

Size45.5 x 29 x 70 mm (power cable not included)
Packing Information
| Details | Small Box | Carton |
|---|
| Quantity | 1 pc | 100 pcs |
| Net Weight | 65 g | 6.5 kg |
| Gross Weight | 80 g | 8 kg |
| Size | 50 x 34 x 74 mm | 270 x 190 x 316 mm |
Supported Countries
4G band compatibility by region - based on Air780EQ module support
Safe to Use
?Mainland China- Full support
?India- Field test recommended
?Indonesia
?Philippines
?Cambodia
?Laos
?Myanmar
?Vietnam
?Bangladesh
?Pakistan
?Sri Lanka
?Nepal
?Hong Kong (China)
?Macau (China)
?Taiwan (China)- Partial coverage, field test recommended
?South Africa
?Nigeria
?Kenya
?Egypt
?Ghana
?Morocco
?Angola
?Ethiopia
?Tanzania
?Uganda
?Uzbekistan
?Kazakhstan
Marginally Usable (Limited Band Support)
??Thailand- B28 not supported
??Malaysia- B7 not supported
??Singapore- B7 not supported
??Timor-Leste- Field test required
??Israel- B28 not supported
??Saudi Arabia- B20/B28 not supported
??UAE- B7/B20/B28 not supported
??Qatar- B7/B20/B28 not supported
??Kuwait- B7/B20/B28 not supported
??Oman- B7/B20 not supported
??Bahrain- B7/B20/B28 not supported
??Jordan- B7/B20 not supported
??Algeria- B7/B20/B28 not supported
??Tunisia- B7/B20 not supported
??Libya- High risk of incompatibility
??Sudan- B7/B20 not supported
??Zimbabwe- High risk of incompatibility
??Mozambique- High risk of incompatibility
??Russia- Partial coverage, B7/B20/B28 not supported
??Turkey- B7/B20/B28 not supported
??Ukraine- B7/B20 not supported
IP Rating IP55 waterproof
Security Password + AES encryption
4G Module Air780EQ
